PHANH KHÍ NÉN DBH

Easy to apply braking pressure by piping factory air pressure.

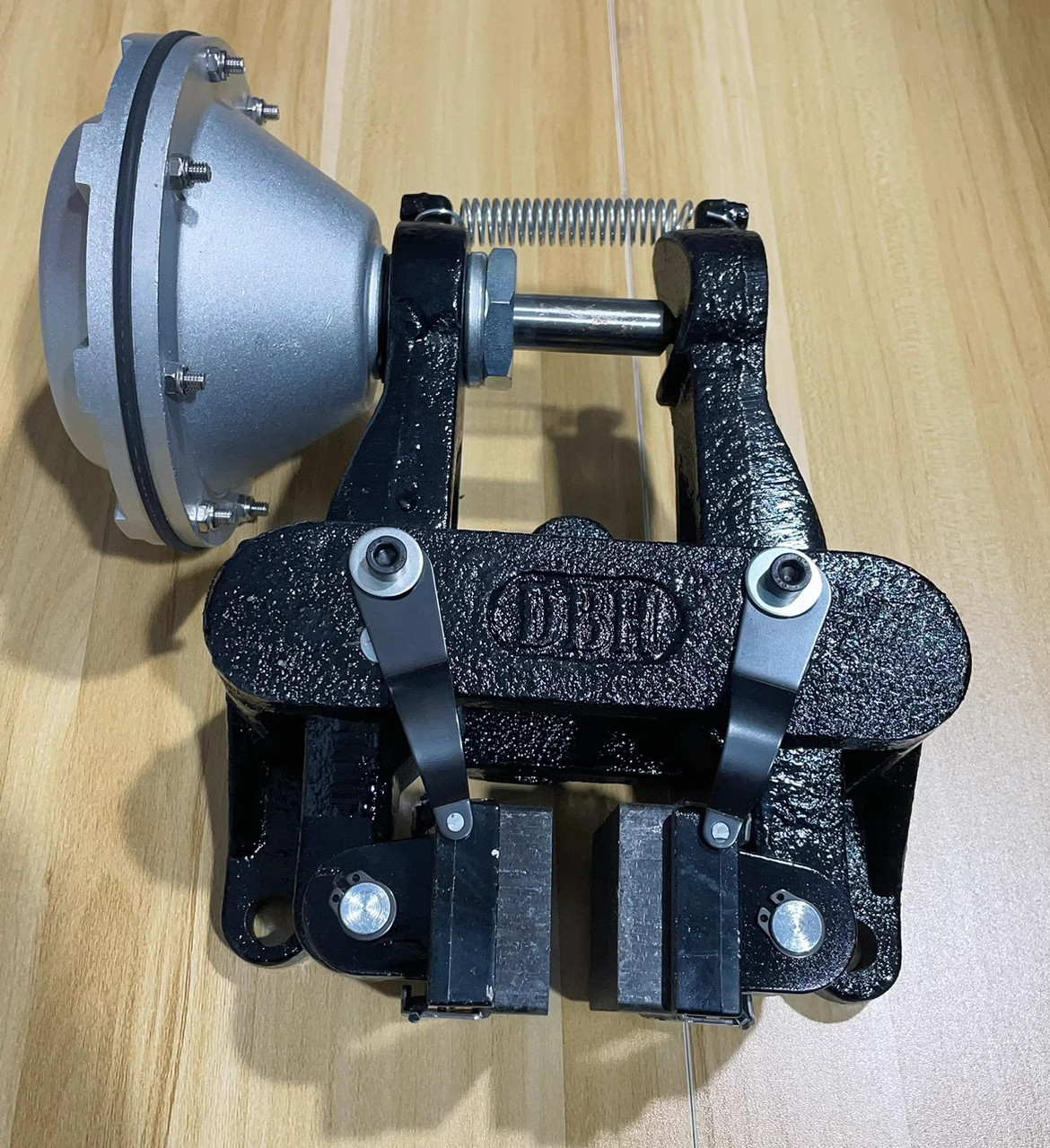

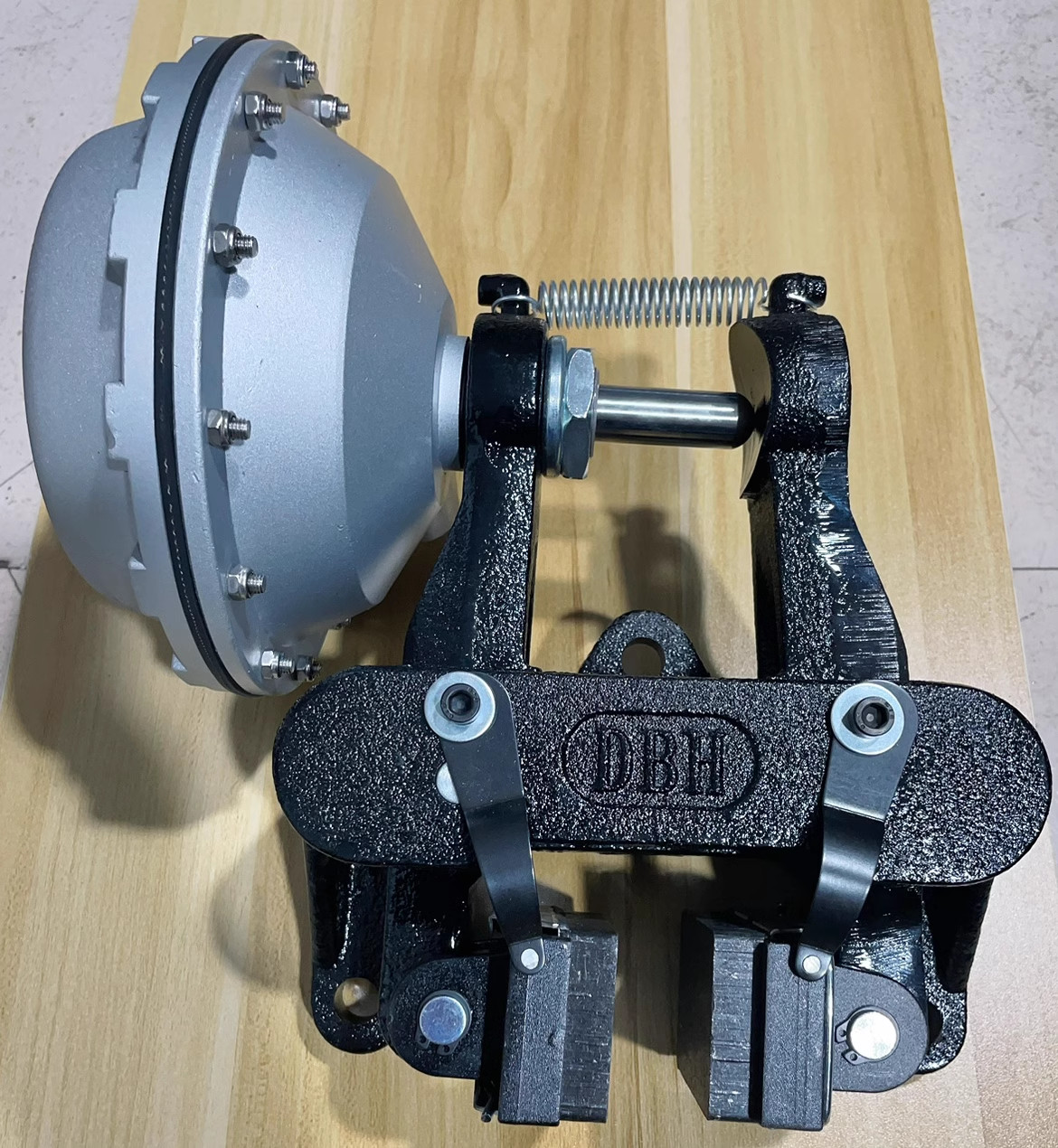

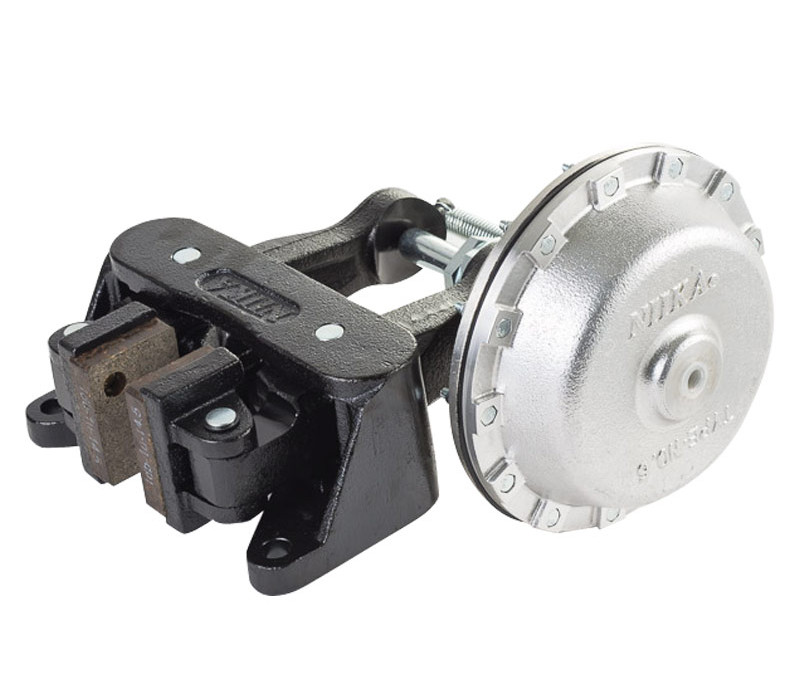

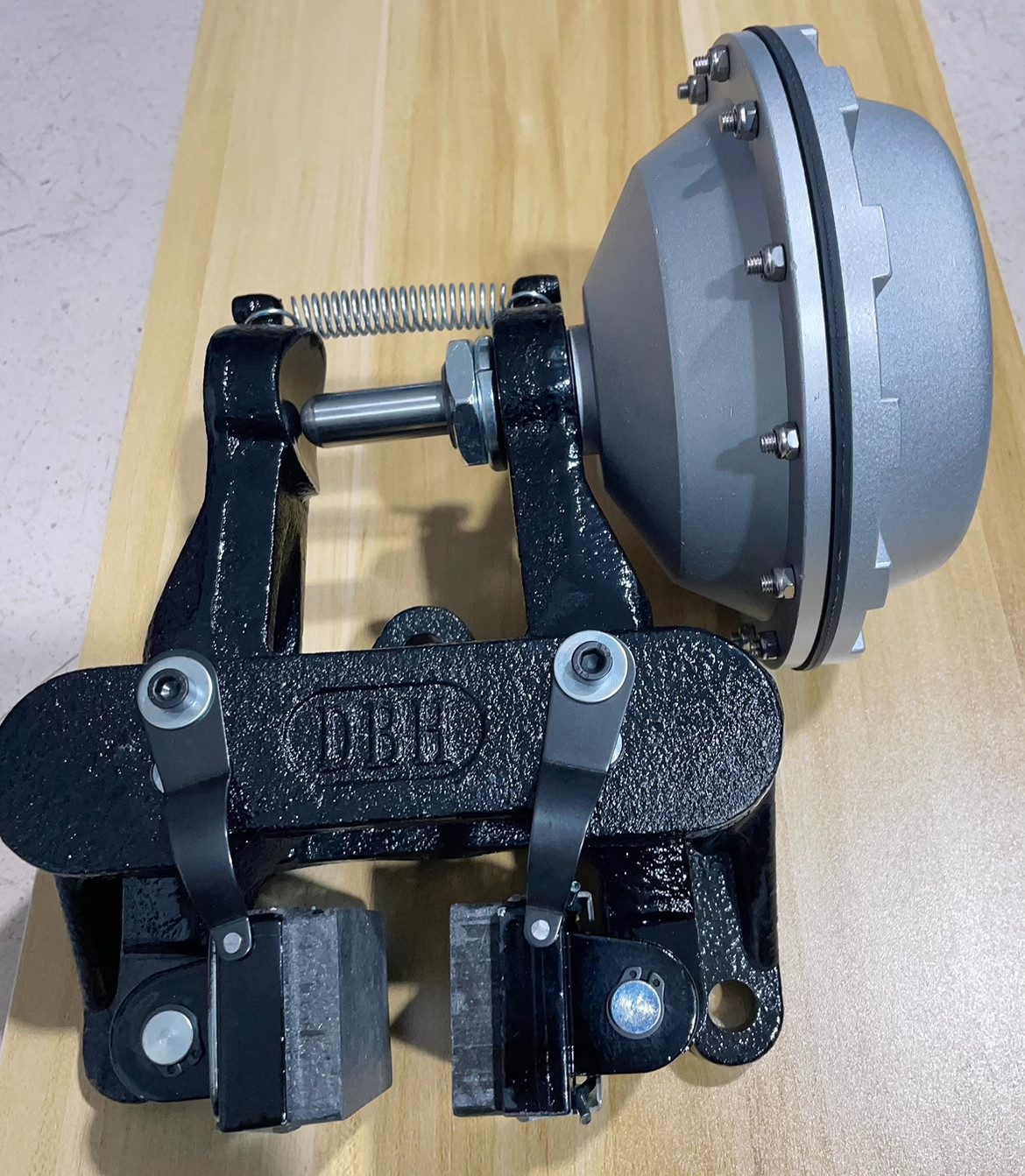

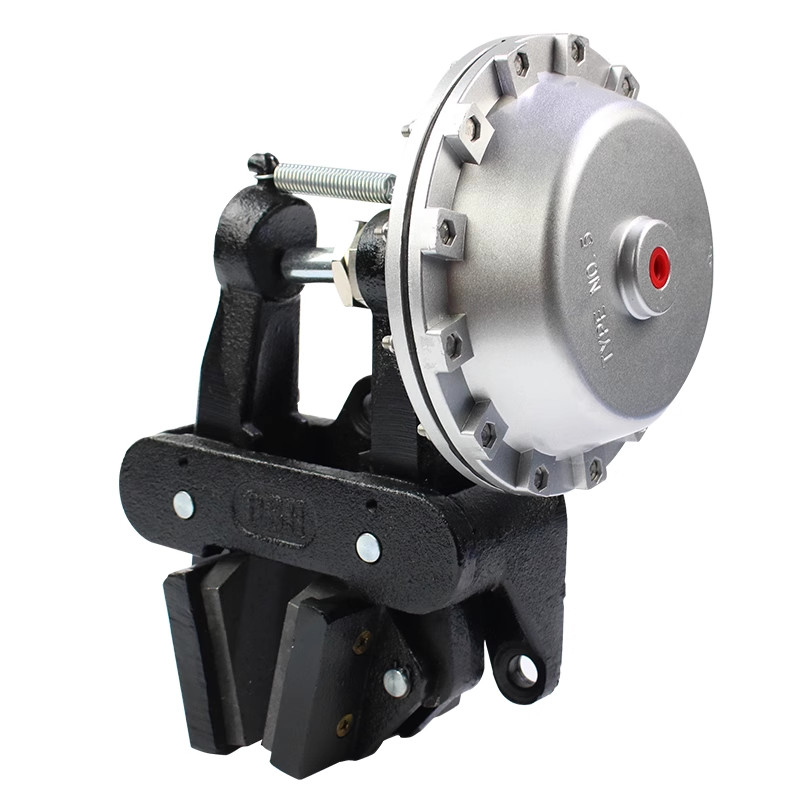

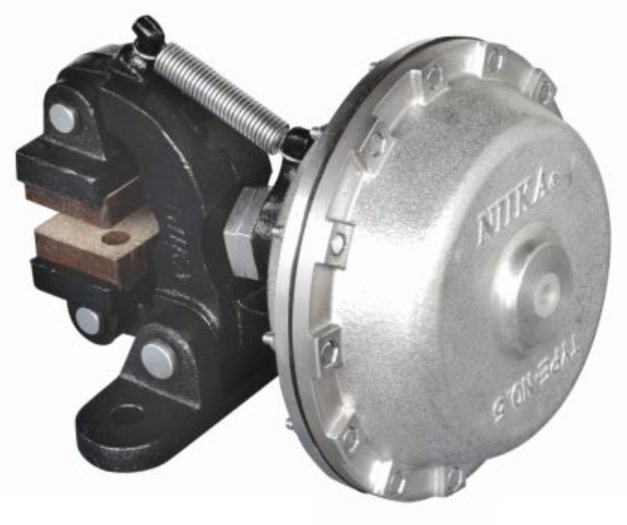

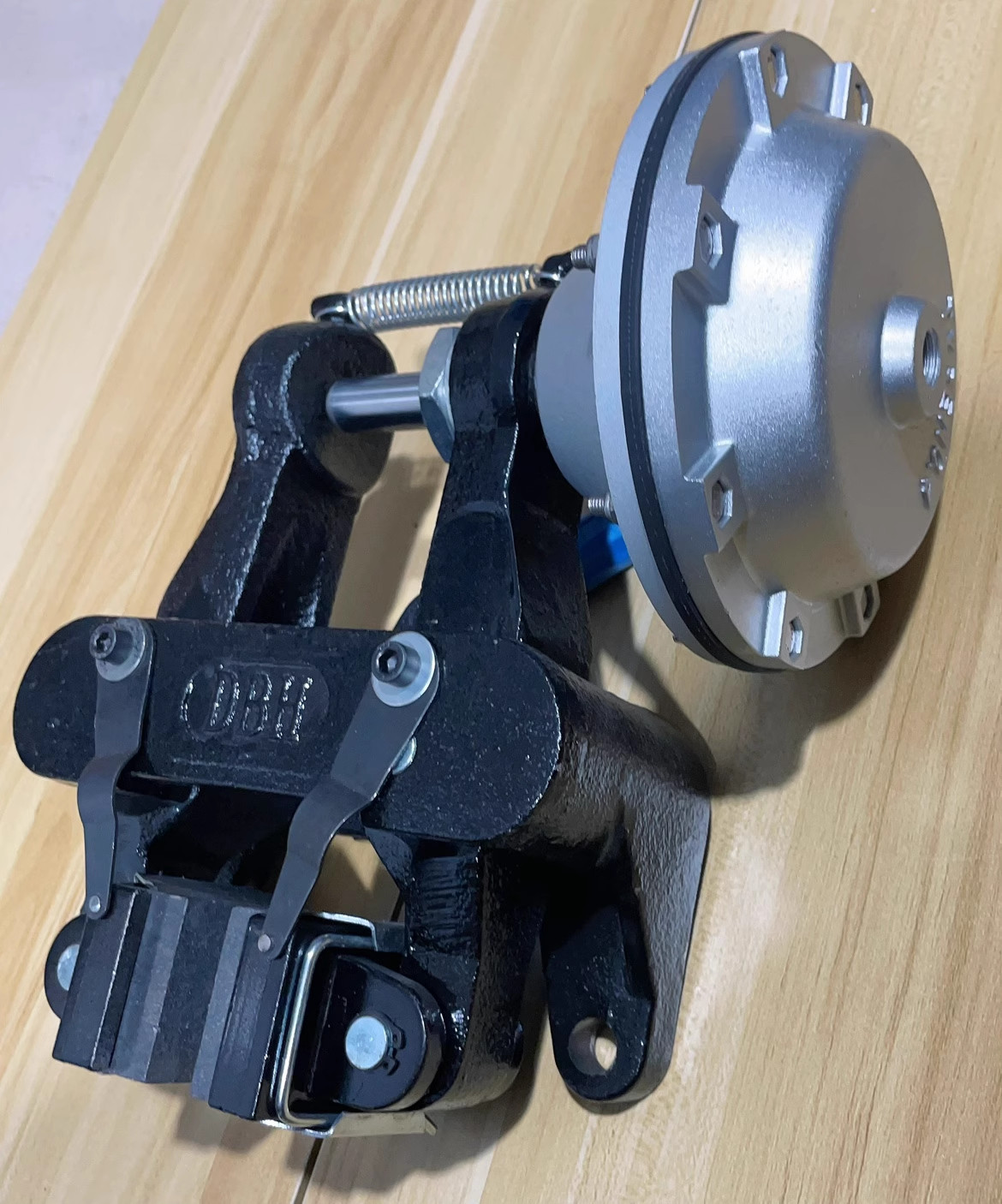

This Pneumatic Disc Brake has high heat resistance and is easy to install.
Suitable for paper making machines, wire drawing machines and amusement equipment.

The type brake is for horizontal-type installation, Add the expandable shrapnel to guarantee the brake balance, The friction part is easy to replace, and it does not contain any asbestos,
To control the deceleration of moving parts for small and medium powers, the best solution is the combination of a brake disc with one or more pneumatic calipers.


DBH-10X series
Torque Formula :
Braking Torque (kgm) =Braking Force (kg) x Effective Disc Radius (Actual)(mm)

Every horizontal caliper separate into the left and right type.
Please indicate left or right side type when order.

Torque versus Pressure
